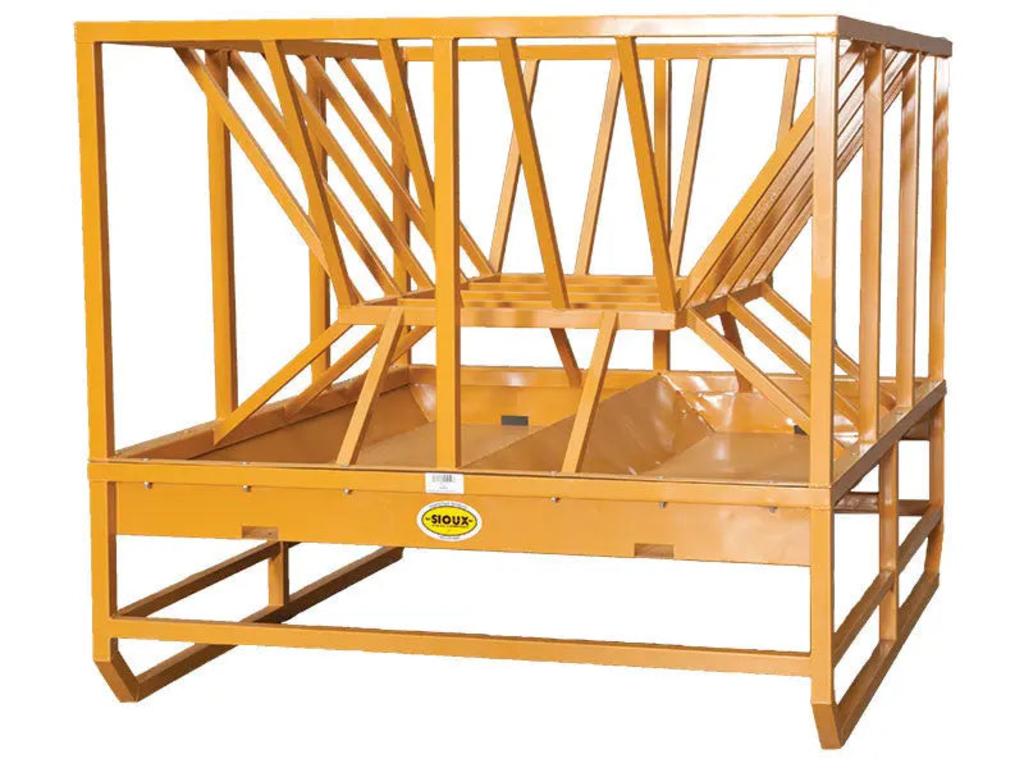

Square Hay and Grain Feeder

Perfect for dairy or cattle operations and pasture feeding. Feed, mineral, grain or silage with your loose, large, round or square hay bales.

Designed and built so that hay that falls past the first layer of bars falls down onto the feeding pan, keeping it in the feeder. This is attained by the inner rows of bars.

A V-type center pushes feed to the outside of the feeder where livestock can reach it, but the second set of bars keeps it contained. Savings of 1/4 to 1/2 of hay bale.

Color: Prairie Gold
Gauge: 2” x 16
Diagonal: 10.3′
Length: 78″
Height: 72″
Width: 96″

The frame is built entirely of square tubing and angle iron to give it strength. The feed pan withstands abuse as well as weather. The all welded design is built to last a lifetime.

Hi-tensile, 50,000 psi steel tubing and powder coated. Pan is made of 18 gauge cold rolled steel with 2 1/2” x 2 1/2” x 1/4” hot rolled angles. All welded design.
