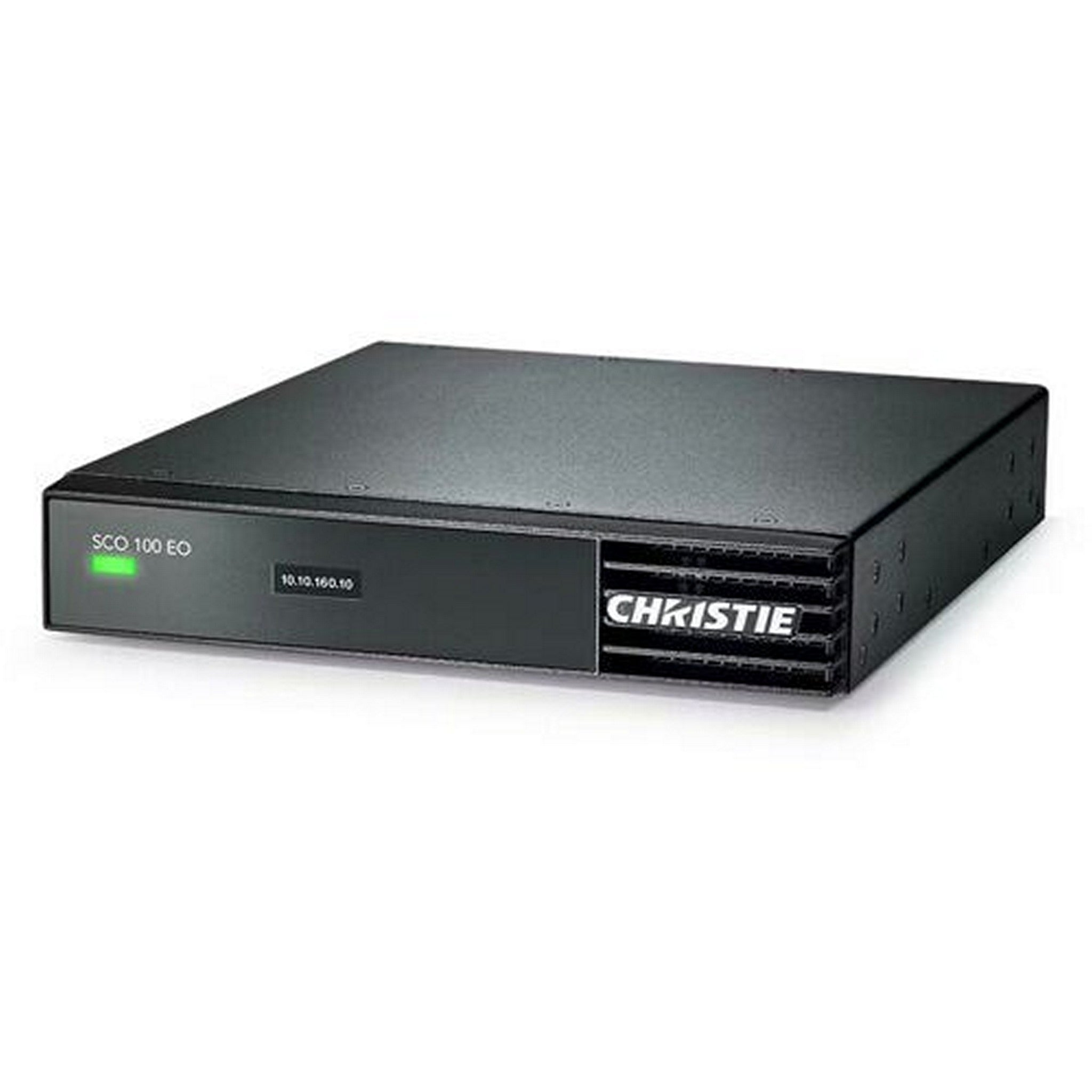

Christie SCO 100 EO Terra Controller

The Christie Terra Controller gives you complete, secure operational control and management of SDVoE systems. Featuring an intuitive web-based programming interface, the Terra Controller is easy to learn and use, simplifying the installation, configuration, programming, management and operational tasks of SDVoE systems.

This embedded device is highly-secure and offers redundancy and web-based configuration making it ideal for reliable operation in mission-critical environments.

Key Features

• Full-control: configure networked devices, control routing, configure audio, manage source and display configurations and easily scale visuals all from a single, easy-to-use programing interface
• Saved configurations and presets: minimize programming and simplify system management by easily accessing preset and saved configurations directly or from a third-party control system using an advanced API
• Embedded operating system: built-in control capabilities operate from a secure and reliable management platform
• Software client: configure and program systems offline before going to site, and map devices to the program during commissioning
• Addressing automation: Startup addressing assistant simplifies configuration for all Terra devices, ensuring they are quickly and reliably addressed during initial setup and configuration changes
• Highly-secure: features multi-level user access, encrypted control and system data, user access and operational system logging, strong password management and more to ensure the safeguarding of your information
• Redundant control configuration: ensures continuous operation of the system
• System-wide updates: single-configuration for easy updates to all Christie Terra components in a system
• Solid-state storage: no moving parts promises reliable operation over time

Technical Specifications

Platform
Processor
Intel Core I7 3.4 GHz
RAM
8GB DDR3
Storage
64GB SSD
Software
Operating System
Windows 10 Embedded
Web Configuration and Control Application
Application Programming Interface (API), JSON
Network Control
2 x 100/1000BaseT Ethernet, RJ45, port 1 control, port 2 unused
HTTPS encryption
TLS 1.2 protocol, 256-bit key, 2048-bit certificate key
Direct Control
Serial RS-232, 9-PinD up to 115.2 k baud
Front Panel
LCD Device Status Display
Factory Use Only
2 x DisplayPort, 1 x 15PinHD RGB analog, 4 x USB (all reserved for factory use)
Dimensions
(WxHxD) 8.78 x 1.7 x 10.24” (223 x 43 x 260 mm) without connectors
(WxHxD) 8.78 x 1.7 x 10.39” (223 x 43 x 264 mm) with connectors
Weight
3.5 lbs. (1.6 kg) excluding power supply
4.5 lbs. (2.1 kg) with power supply
Rack Mount
Rack mount ears included
Material
Aluminum, painted black
Environmental
Operating Temperature
From 0°C – 40°C
Operating Temperature
From 0°C – 40°C
Relative Humidity
20 – 90% RH (non-condensing)
External Power Supply
Input
100 – 240 VAC, 50 – 60 Hz
Output
12VDC, 7.08A, 85W max
Alternate power supply output
12VDC, 6.25A, 75W max
Typical Operation
26W, 89 BTU
